Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control

Brand Name : Merrytek

Model Number : MC616V RC

Certification : UL

Place of Origin : China

MOQ : Stop production, not available.

Price : Negotiation

Payment Terms : T/T or Western Union or PayPal

Supply Ability : Out of production

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Product Name : Microwave Motion Sensor

Input Voltage : 120/277VAC

Stand-by Power : < 1W

1-10V Dimming : < 50mA （Non constant current source）

Operating Frequency : 5.8 GHz ±75 MHz ISM wave band

Working temperature : -35℃~+55℃

Protection class : IP20

Approvals : FCC UL

Mounting Height : 12m Max.

Installation Size : 82*82*42mm

Contact Now

Notice: this product is out of production, please contact our sales for the alternative products.

Microwave Motion Sensor MC616V RC North Amercian Version

Can Be Set Via MH01 Remote Control

  • On-Off/ 3-step dimming function
  • Remote control microwave motion sensor
  • North Amercian Version
  • Stand-by power < 1W
  • Fuctions can be set via infrared remote control MH01, such as detection area, hold time,
    stand-by dimming level, etc..
  • 5 Years Guarantee

Input Input Voltage 120/277V AC 50Hz/60Hz
Rated Input Voltage 120/277V AC 50Hz/60Hz
Stand-by Power < 1W
Wiring Method Lead connection Wire diameter:18AWG
Output Operating Mode ON/OFF 1-10V
Load Power

400W (Inductive)@120VAC 800W (Resistive) @120VAC

800W (Inductive)@277VAC 1000W (Resistive) @277VAC
1-10V Dimming < 50mA (Non constant current source)
Wiring Method Lead connection Wire diameter:22AWG
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz ISM wave band
HF Radiated power 0.5mW Max.
Detection Area 100%/75%/50%/25%
Hold Time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/Disable
Daylight Sensor 5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable
Preset Brightness 10%/20%/30%/50%
Mounting Height 12m Max.
Detection Angle 150°(Wall Mounting), 360°(Ceiling Mounting)

Operating

Environment

 Operating temperature/
humidity		 -35℃....+55℃
Storage temperature/humidity -40℃... +80℃

Safety

& EMC

 Isolation pressurization N/A
EMC N/A
Others Certificate requirement FCC UL
IP rating IP20
Protection level N/A
Installation requirement Independent side mounting
Installation Size 82*82*42mm
Packaging requirement Bubble Bag + Clapboard +Outer Carton (K=A)
Life 50000h

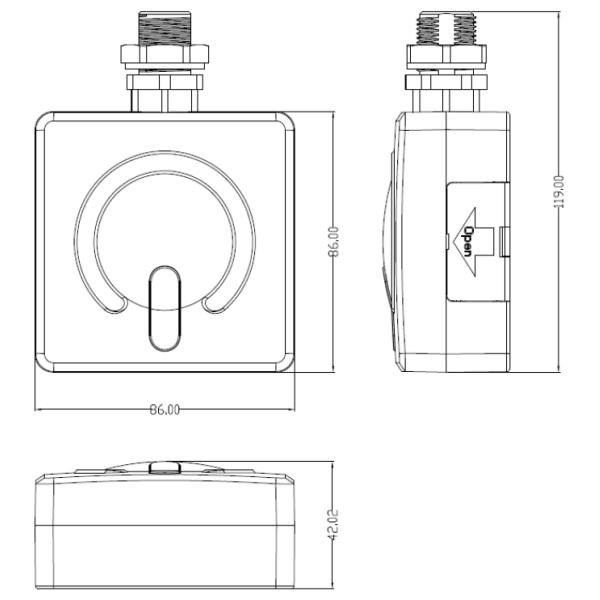

Dimension (Unit:mm)
Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control
Wiring Diagram
Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control

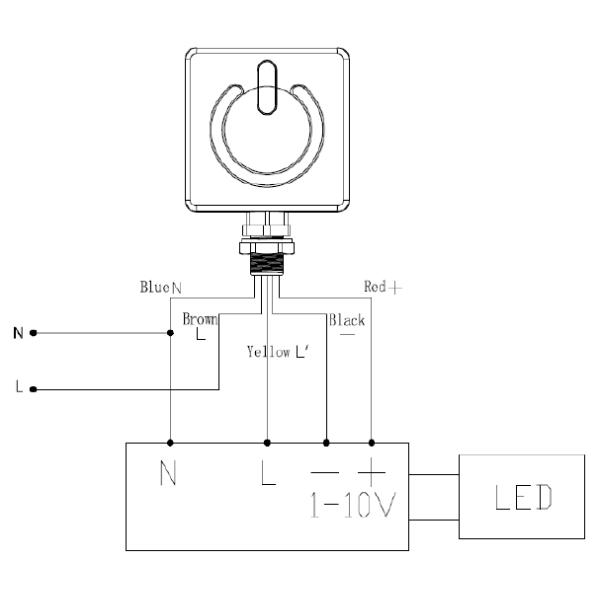

Diagram A: MC616V RC

Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control

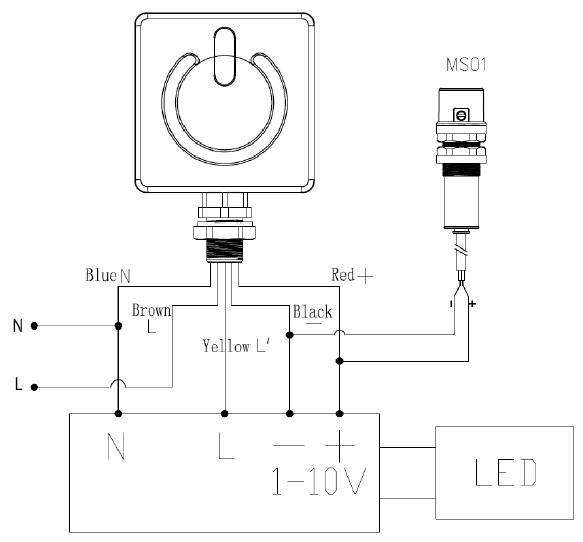

Diagram B: MC616V RC+MS01

Function
Microwave Motion Sensor MC616V RC North Amercian Version Can Be Set Via MH01 Remote Control
